封接式软管连接件
封接式软管连接件
-穿线方便
黑
基本信息
产品材质：TPE
工作温度：-40℃~100℃
防护等级：IP65

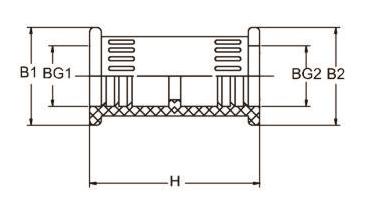

| 型号 TYPE NO. | 适配软管 | 外径 O.D | 包装 Packing | ||
| BG1 | BG2 | B1 | B2 | ||
| BK-10 | 1/4" | 1/4" | 17.5 | 17.5 | 50 |
| BK-13 | 5/16" | 5/16" | 20 | 20 | 50 |
| BK-15.8 | 3/8" | 3/8" | 23 | 23 | 50 |
| BK-18.5 | 18.5 | 18.5 | 26.5 | 26.5 | 50 |
| BK-21.2 | 1/2" | 1/2" | 29.5 | 29.5 | 50 |
| BK-28.5 | 3/4" | 3/4" | 36.5 | 36.5 | 50 |
| BK-34.5 | 1" | 1" | 42.5 | 42.5 | 50 |
| BK-42.5 | 1-1/4" | 1 1/4" | 51.5 | 51.5 | 20 |
| BK-54.5 | 2" | 2" | 63 | 63 | 20 |
