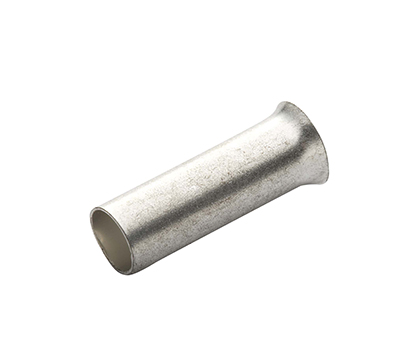

管形欧式端子（裸）
管形欧式端子（裸）
- 采用优质紫铜制成,导电性良好.
基本信息
产品材质：紫铜。
产品特点：采用优质亚光电镀，防锈时间大大加长，无锋利部位，接线美观。
产品特性：品质优良，压紧后不断裂松开，-40度耐热至150度正常使用。
使用方法：将电线剥开外皮，穿入端子后铜管。

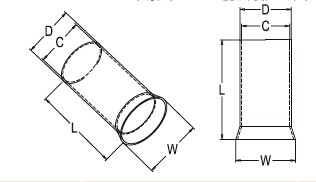

| 型号 | 尺寸(mm) | 线规 | ||||
| mm² | TYPE NO. | L | C | D | W | A.W.G |
| 0.5 | CN005006 | 6 | 1 | 1.3 | 2.1 | 22 |
| CN005008 | 8 | |||||
| CN005010 | 10 | |||||
| 0.75 | CN007506 | 6 | 1.2 | 1.5 | 2.3 | 20 |
| CN007508 | 8 | |||||
| CN007510 | 10 | |||||
| 1 | CN010006 | 6 | 1.4 | 1.7 | 2.5 | 18 |
| CN010008 | 8 | |||||
| CN010010 | 10 | |||||
| CN010012 | 12 | |||||
| 1.5 | CN015006 | 6 | 1.7 | 2 | 2.8 | 16 |
| CN015008 | 8 | |||||
| CN015010 | 10 | |||||
| CN015012 | 12 | |||||
| 2.5 | CN025006 | 6 | 2.2 | 2.5 | 3.4 | 14 |
| CN025008 | 8 | |||||
| CN025010 | 10 | |||||
| CN025012 | 12 | |||||
| 4 | CN040008 | 8 | 2.8 | 3.2 | 4 | 12 |
| CN040009 | 9 | |||||
| CN040010 | 10 | |||||
| CN040012 | 12 | |||||
| CN040015 | 15 | |||||
| CN040018 | 18 | |||||
| 6 | CN060010 | 10 | 3.5 | 3.9 | 4.7 | 10 |
| CN060012 | 12 | |||||
| CN060015 | 15 | |||||
| CN060018 | 18 | |||||
| 10 | CN100012 | 12 | 4.5 | 4.9 | 5.8 | 8 |
| CN100015 | 15 | |||||
| CN100018 | 18 | |||||
| 16 | CN160012 | 12 | 5.8 | 6.2 | 7.5 | 6 |
| CN160015 | 15 | |||||
| CN160018 | 18 | |||||
| 25 | CN250015 | 15 | 7.3 | 7.7 | 9.5 | 4 |
| CN250016 | 16 | |||||
| CN250018 | 18 | |||||
| CN250022 | 22 | |||||
| 35 | CN350016 | 16 | 8.3 | 8.7 | 11 | 2 |
| CN350018 | 18 | |||||
| CN350020 | 20 | |||||
| CN350025 | 25 | |||||
| 50 | CN500018 | 18 | 10.3 | 10.9 | 13 | 1/0 |
| CN500020 | 20 | |||||
| CN500025 | 25 | |||||
| 70 | CN700022 | 22 | 13.5 | 14.3 | 15.3 | 2/0 |
| CN700025 | 25 | |||||
| 95 | CN950025 | 25 | 14.7 | 15.5 | 16.6 | 3/0 |
| CN950032 | 32 | |||||
| 120 | CN120030 | 30 | 16.7 | 17.6 | 18.6 | 4/0 |
| CN120032 | 32 | |||||
| CN120034 | 34 | |||||
| 150 | CN150032 | 32 | 19.5 | 20.5 | 21.5 | 250/300 |
| CN150038 | 38 | |||||
